Air Corner Tilters

Regular price
$8,467.88
Sale price
$8,467.88
Regular price
Sold out
Unit price
per
Model: AIR-THL-SS
More Info
Weight: 460 lbs 460 lbs 460 lbs 30 lbs 460 lbs
Height: 35.25 in 35.25 in 52.28 in 35.25 in
Width: 78.5 in 78.5 in 70.5 in 78.5 in
Depth: 50.875 in 50.875 in 45 in 50.875 in
Lead time: 15 25 25 25 15 Days

The air corner tilter is a floor level multi-ply airbag powered tilter that provides ergonomic loading and unloading of bulk containers, gaylords, or crates. It is accessible by either pallet or fork truck and is activated by a hand operated control lever. The air bag inflates tilting and the material shifts to the corner of the container where it can be easily removed by manual or mechanical means. The regulator is factory present to begin rotating the container when the weight reaches approximately 900 pounds. Includes adjustable vacuum pick-up wand holder (3-1/2" inside Diameter) and provides 12� of adjustment to accommodate various container heights.

Feature

  • Provides ergonomic loading and unloading of bulk containers
  • Accessible by pallet or fork truck and is activated by a hand lever
  • Adjustable air regulator to a predetermined pressure
  • The pressure adjusts to the weight of your application
Non Contact Shipping Warranty Included Immediate Shipping Quotes
We accept:
Other Models
Model Name Description PDF Price

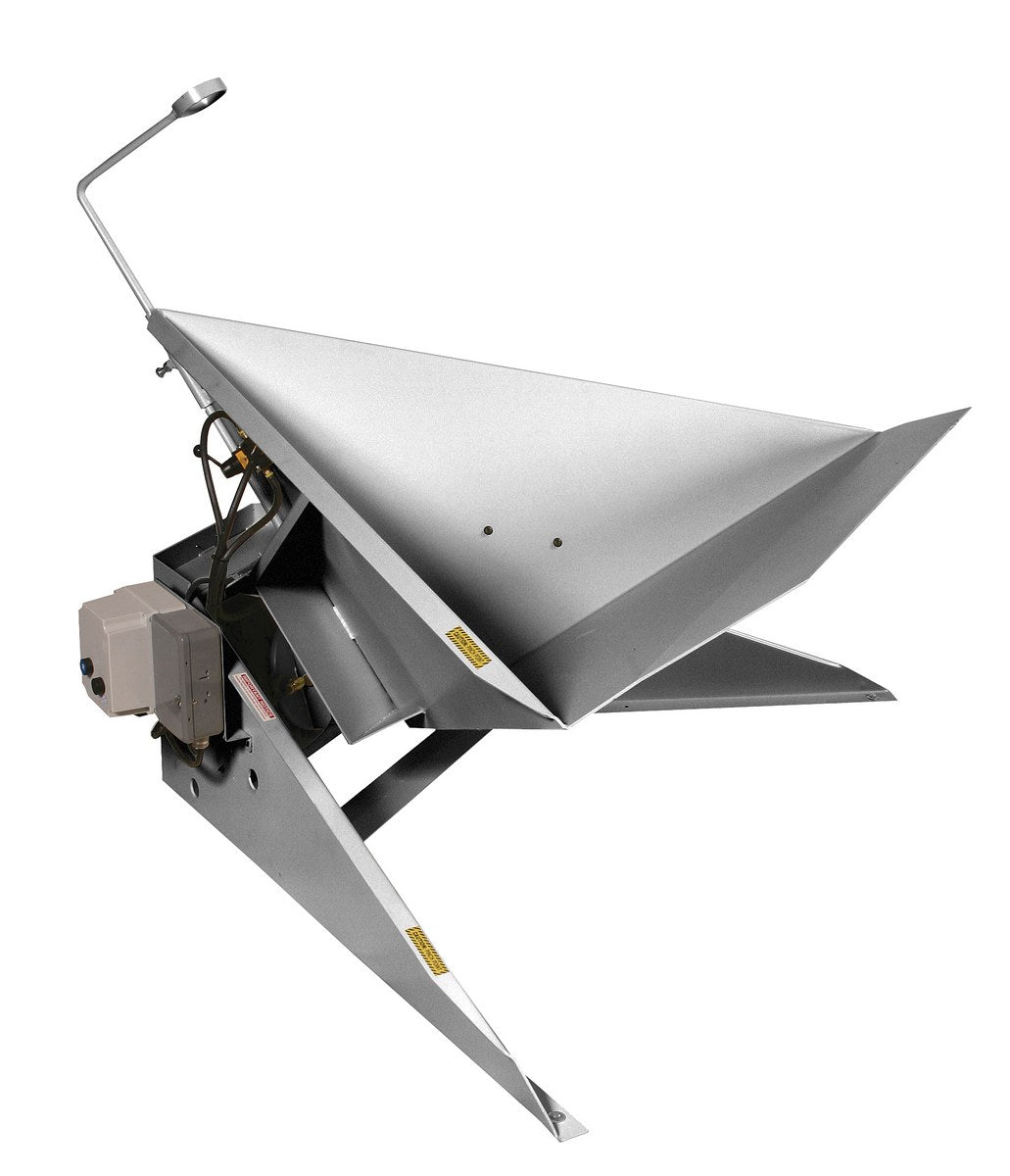

AIR-THL-SS SS Hand Lever Air Corner Tilter
Weight : 460 lbs
Height : 35.25 in
Width : 78.5 in
Depth : 50.875 in
Lead time : 15 Days
$8,467.88 Add to cart

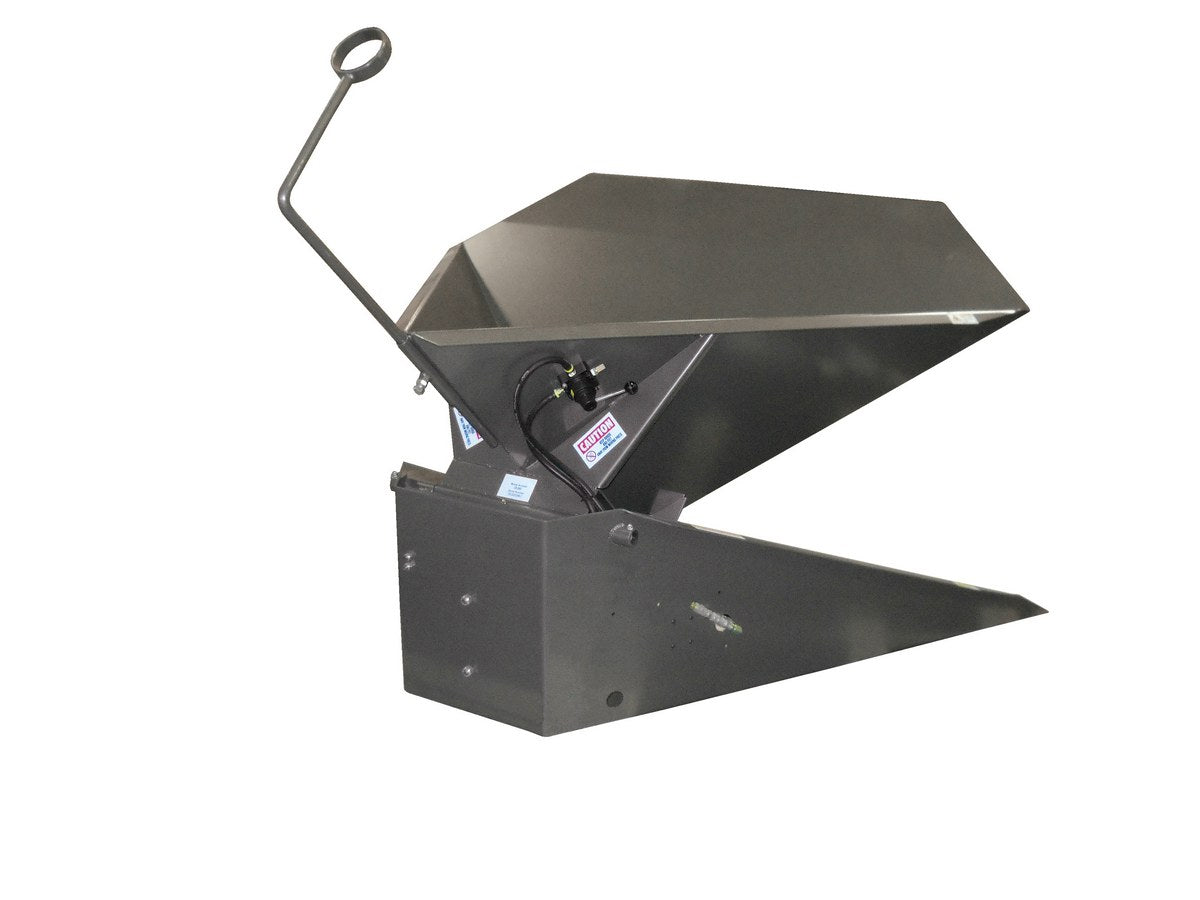

AIR-THL Hand Lever Air Corner Tilter
Weight : 460 lbs
Height : 35.25 in
Width : 78.5 in
Depth : 50.875 in
Lead time : 25 Days

$4,192.97 Add to cart
AIR-TFP Foot Treadle Air Corner Tilter
Weight : 460 lbs
Height : 52.28 in
Width : 70.5 in
Depth : 45 in
Lead time : 25 Days
$4,261.97 Add to cart

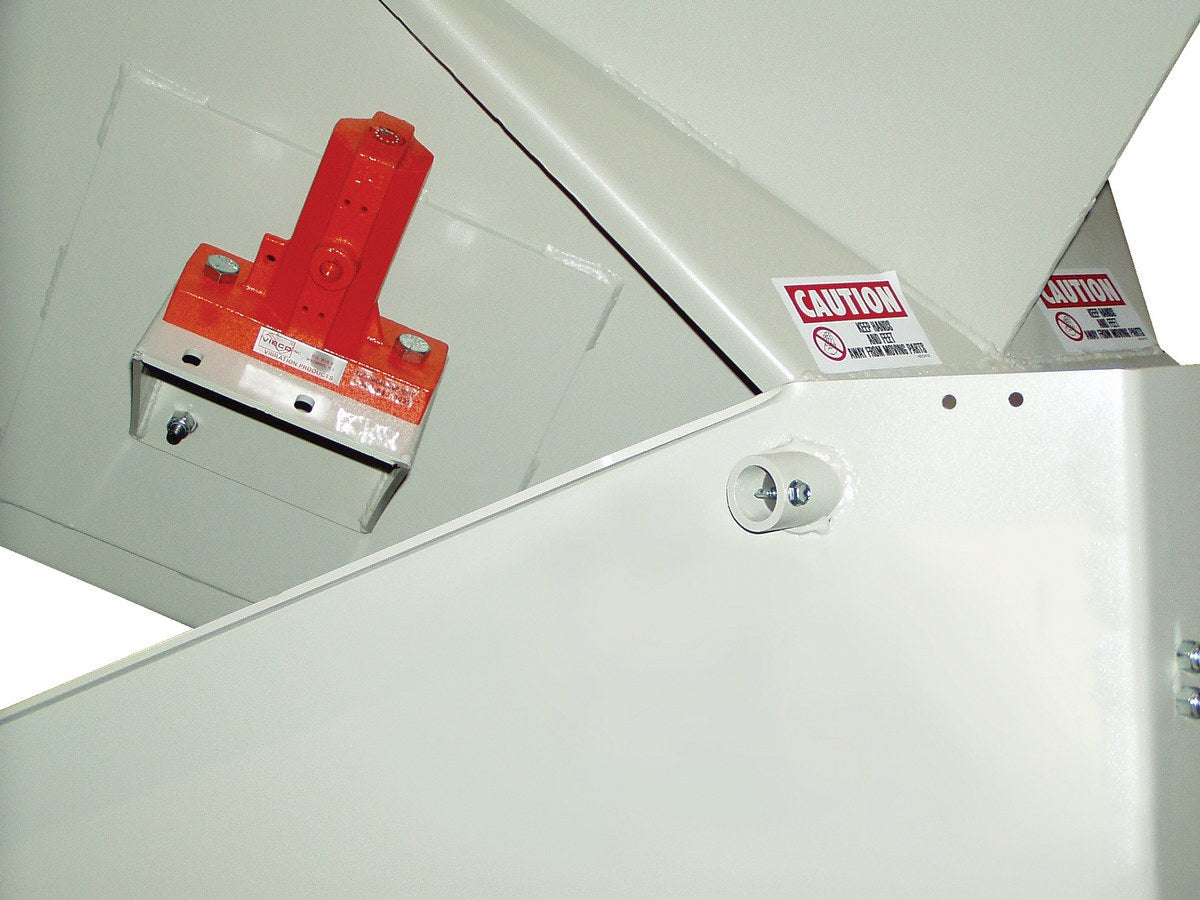

AIR-PVO Corner Tilt Table Power Vibration
Weight : 30 lbs
Height :
Width :
Depth :
Lead time : 25 Days
$1,492.91 Add to cart
