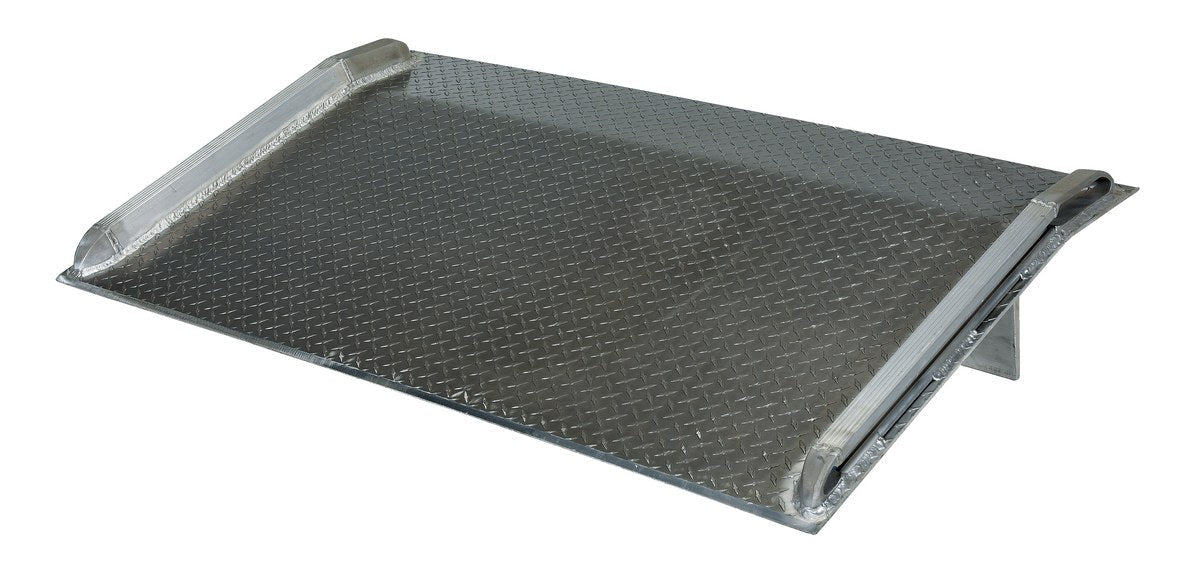

Aluminum Truck Dockboards (Welded Aluminum Curbs)

Regular price
$1,277.00
Sale price
$1,277.00
Regular price
Sold out
Unit price
per
Model: BTA-12006048
More Info
Weight: 196 lbs 215 lbs 196 lbs
Height: 11.625 in 11.75 in 11.625 in
Width: 60 in 78 in 60 in
Depth: 48 in 48 in 48 in
Lead time: 2 20 2 Days

The Aluminum truck dock board is engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Locking legs are uneven to allow the dock board to sit canted, while not in use, for easier pickup by fork trucks. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least 15 (in.) wider than the load or equipment passing between the curbs. Bend is 11 degrees and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Feature

  • 100% Aluminum construction provides rugged long lasting use
  • Raised-diamond tread plate dock board surface
  • Welded aluminum locking legs underneath dock board
  • Beveled entry and exit edges provide a smooth transition
Non Contact Shipping Warranty Included Immediate Shipping Quotes
We accept:
Other Models
Model Name Description PDF Price
BTA-12006048 60x48 Alum. Truck Dockboard 12k
Weight : 196 lbs
Height : 11.625 in
Width : 60 in
Depth : 48 in
Lead time : 2 Days
$1,277.00 Add to cart

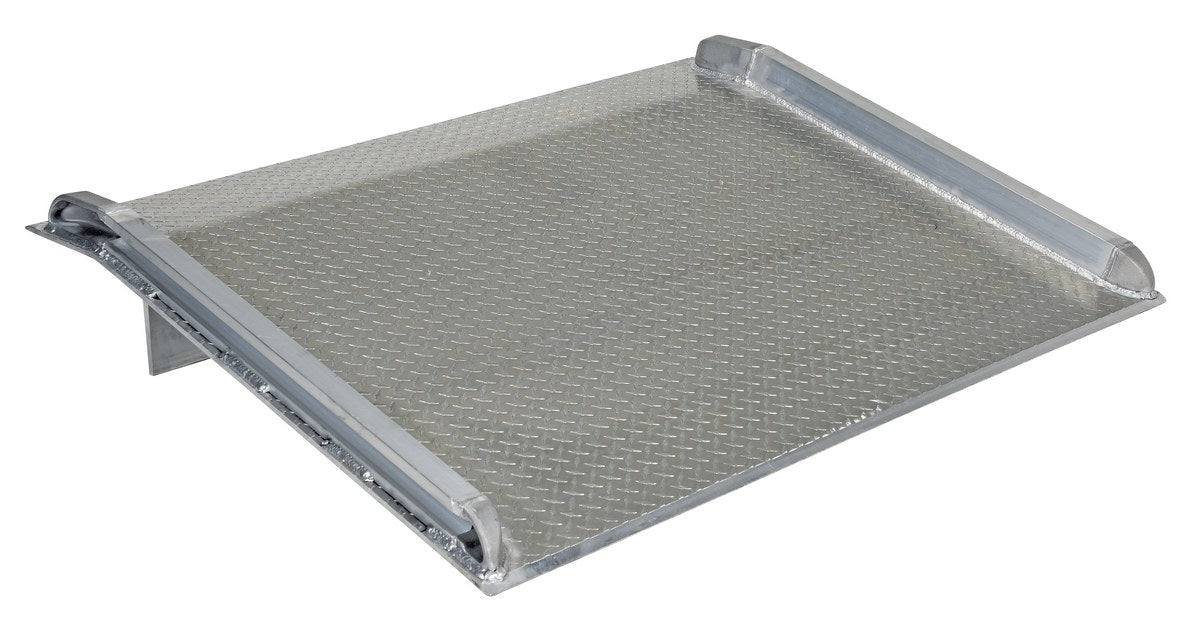

BTA-10007848 78x48 Alum. Truck Dockboard 10k
Weight : 215 lbs
Height : 11.75 in
Width : 78 in
Depth : 48 in
Lead time : 20 Days
$1,458.00 Add to cart
