Hinge & Sliding Tilt Tables

Regular price
$3,432.00
Sale price
$3,432.00
Regular price
Sold out
Unit price
per

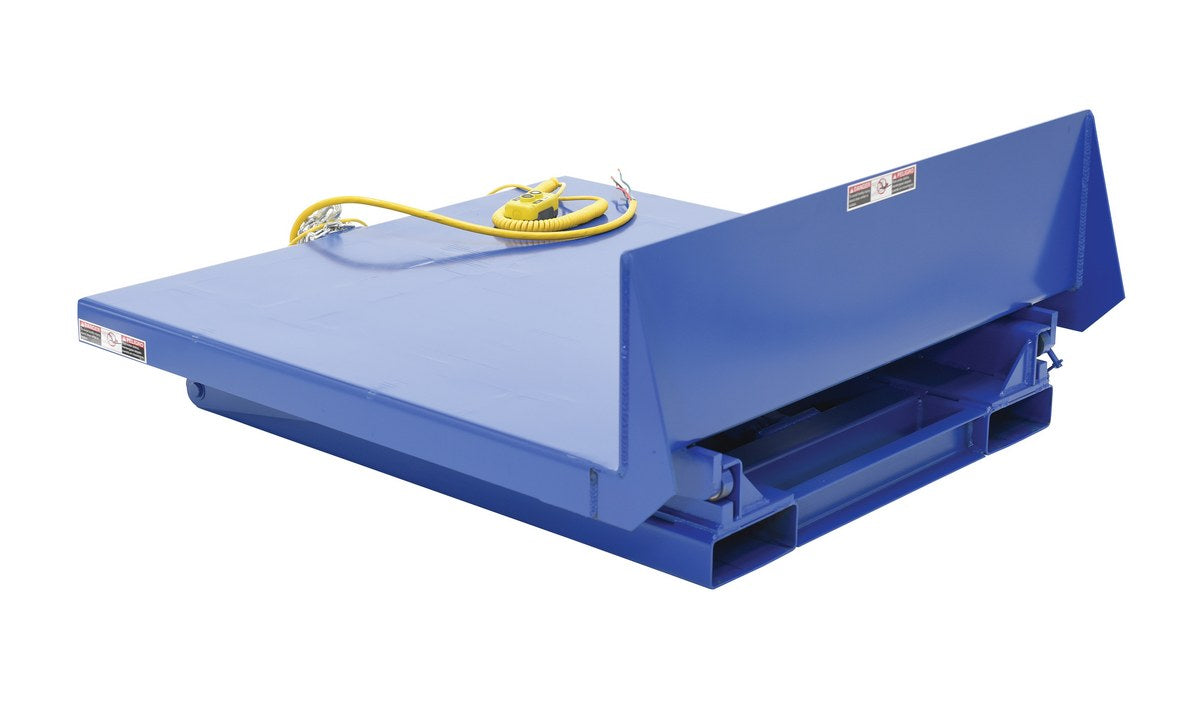

Model: EHTT-L
More Info
Weight: 648 lbs 658 lbs 648 lbs
Height: 44 in 22 in 44 in
Width: 48 in 48 in 48 in
Depth: 56 in 56 in 56 in
Lead time: 90 90 90 Days

The hinge and sliding tilt table offers the rugged durability of the standard efficiency master line of tilters, plus they offer an extra platform height. The lip is without side gussets allowing for loading and unloading on three sides. This tilt table has a two-button handheld pendent control with additional voltage options available. The pressure plated pump is coupled to an application specific manifold that features counterbalanced valves and modulated flow control for maximum efficiency.

The sliding tilt table incorporates a patented sliding link-tilt design for maximum stability while occupying minimum space. As the table is tilted, the front edge of the container moves away from the operator. The center-of-gravity of the load remains closer to the center of the frame. Side gussets are required when ordering optional accordion skirt.

Feature

  • Offers rugged durability of the standard master line plus extra platform height
  • Features counterbalanced valves and modulated flow control for maximum efficiency
  • Patented sliding link-tilt design for maximum stability while occupying minimum space
  • Center-of-gravity of load remains closer to the center of the frame
Non Contact Shipping Warranty Included Immediate Shipping Quotes
We accept:
Other Models
Model Name Description PDF Price
EHTT-L 48x47.5 Sliding Tilt Table 4k
Weight : 648 lbs
Height : 44 in
Width : 48 in
Depth : 56 in
Lead time : 90 Days

$3,432.00 Add to cart

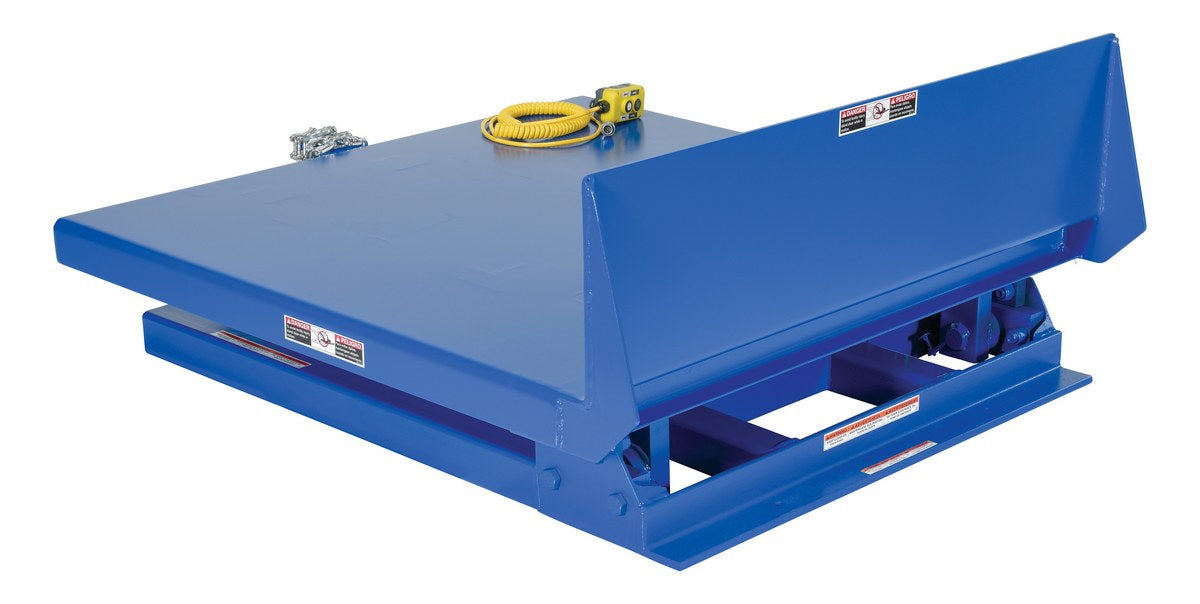

EHTT 48x47.5 Hinge Tilt Table 4k
Weight : 658 lbs
Height : 22 in
Width : 48 in
Depth : 56 in
Lead time : 90 Days

$3,200.00 Add to cart
