Positive Locking Plate Clamps

Regular price
$358.86
Sale price
$358.86
Regular price
Sold out
Unit price
per
Model: LPC-40
More Info
Weight: 12 lbs 20 lbs 9 lbs 12 lbs
Height: 7.5 in 8 in 5 in 7.5 in
Width: 3.5 in 4 in 3 in 3.5 in
Depth: 12 in 15 in 10 in 12 in
Lead time: 2 2 2 2 Days

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

Feature

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Non Contact Shipping Warranty Included Immediate Shipping Quotes
We accept:
Other Models
Model Name Description PDF Price

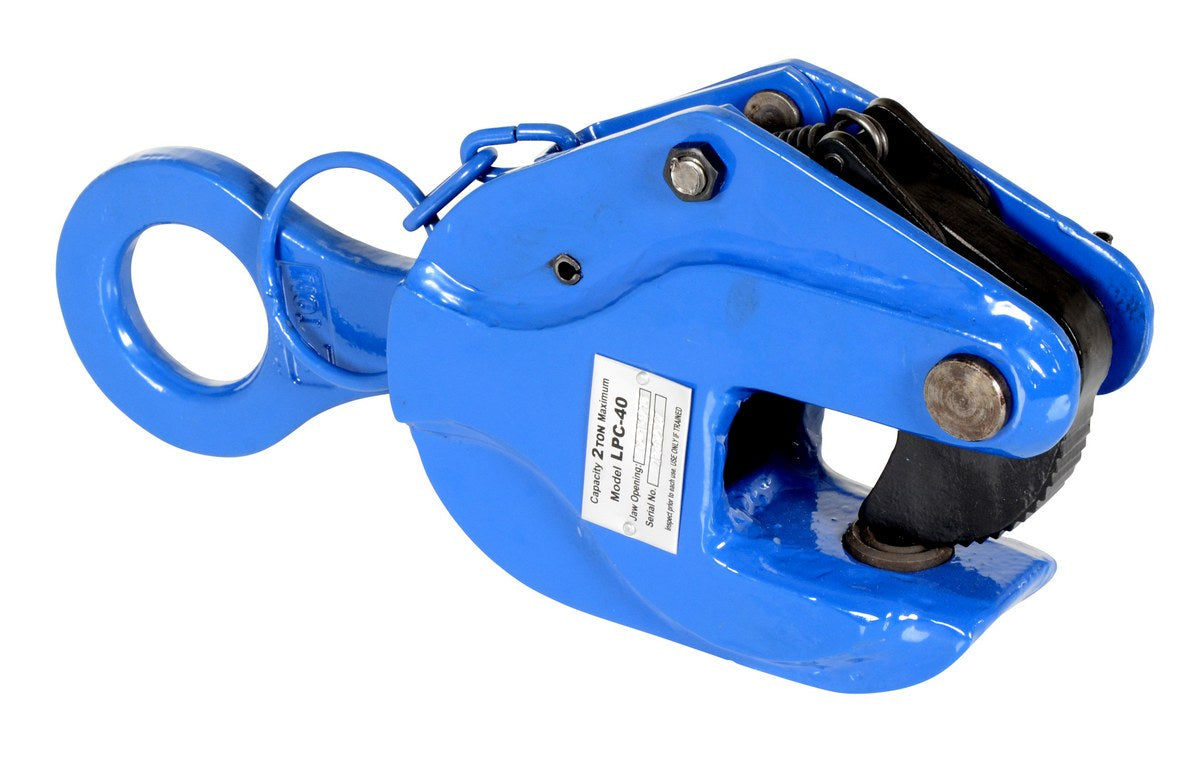

LPC-40 Positive Locking Plate Clamp 4k
Weight : 12 lbs
Height : 7.5 in
Width : 3.5 in
Depth : 12 in
Lead time : 2 Days

$358.86 Add to cart

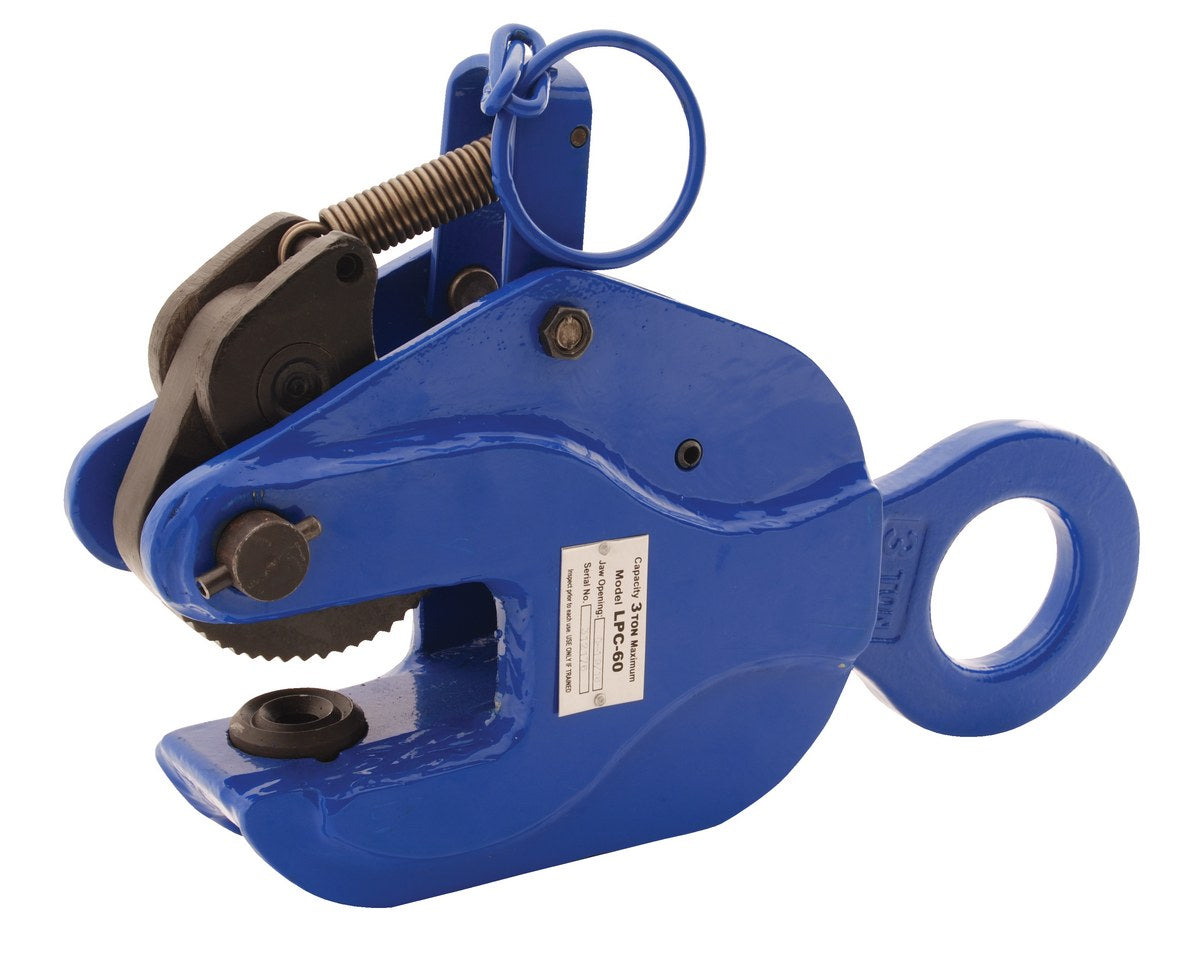

LPC-60 Positive Locking Plate Clamp 6k
Weight : 20 lbs
Height : 8 in
Width : 4 in
Depth : 15 in
Lead time : 2 Days

$448.89 Add to cart

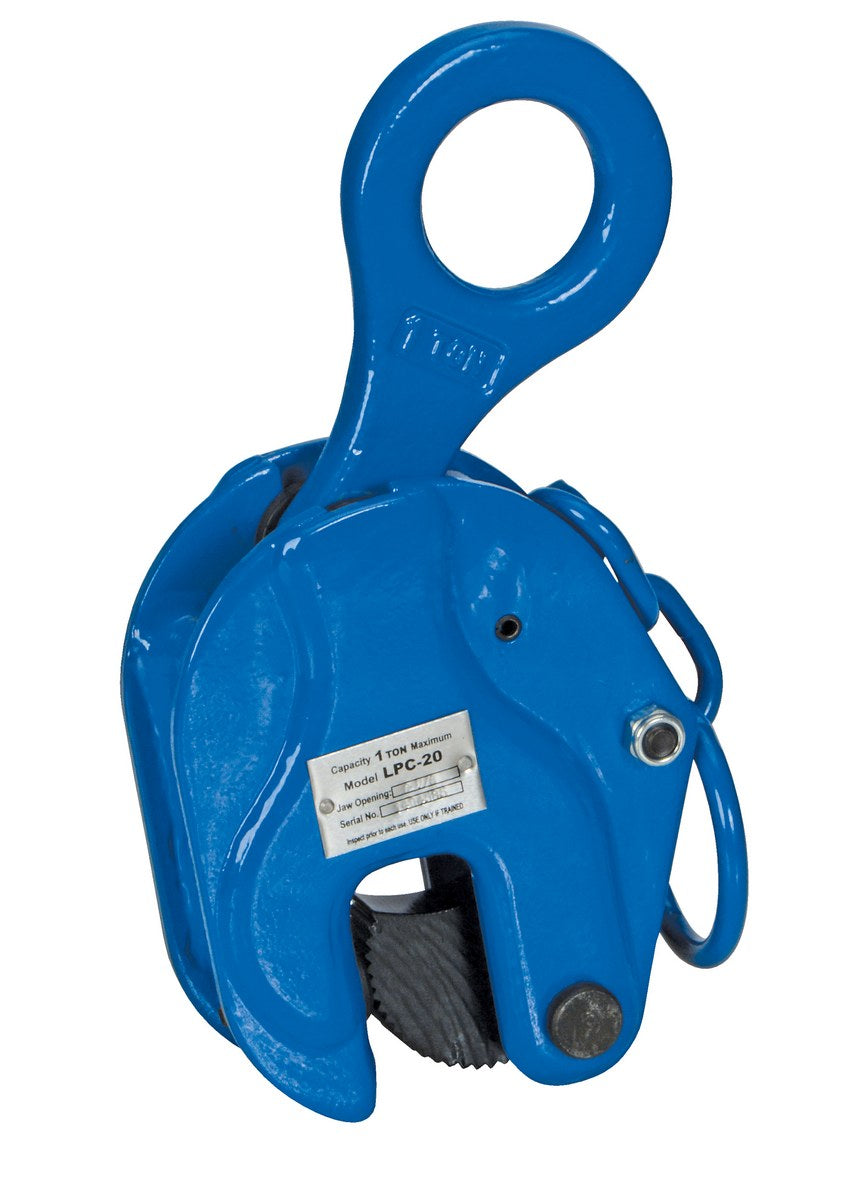

LPC-20 Positive Locking Plate Clamp 2k
Weight : 9 lbs
Height : 5 in
Width : 3 in
Depth : 10 in
Lead time : 2 Days


$291.97 Add to cart
